PCVC740KSC1.5 evaluation with Amp off
Back Home Up


(may take a while, a 240kB picture is loading.....)

Here is an evaluation the cooled and un-cooled PCVC740K SC1.5 cam with and without amplifier enabled. The mod was done using a 6.2V Zener diode to limit the CCD amp supply during exposure.

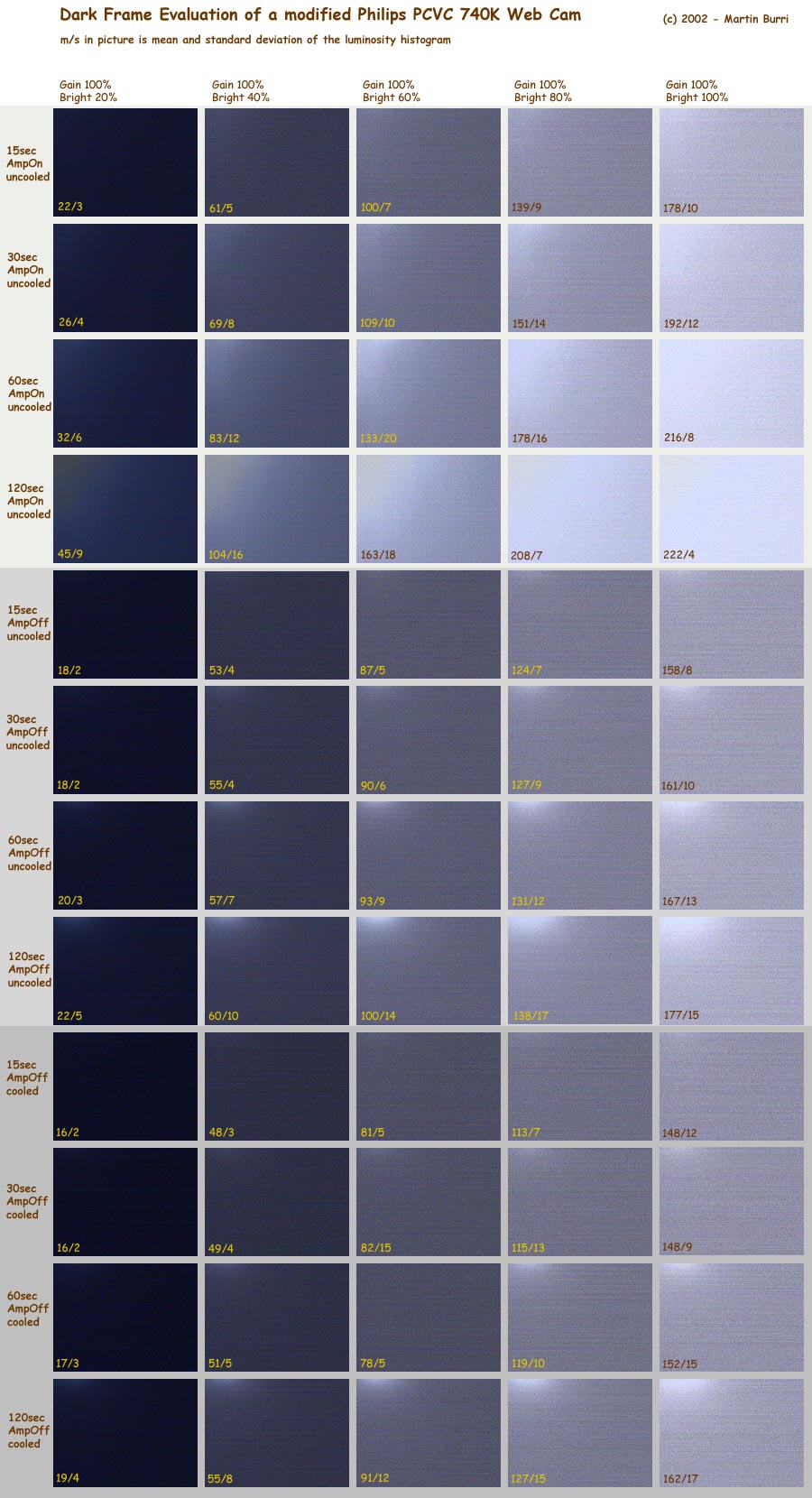

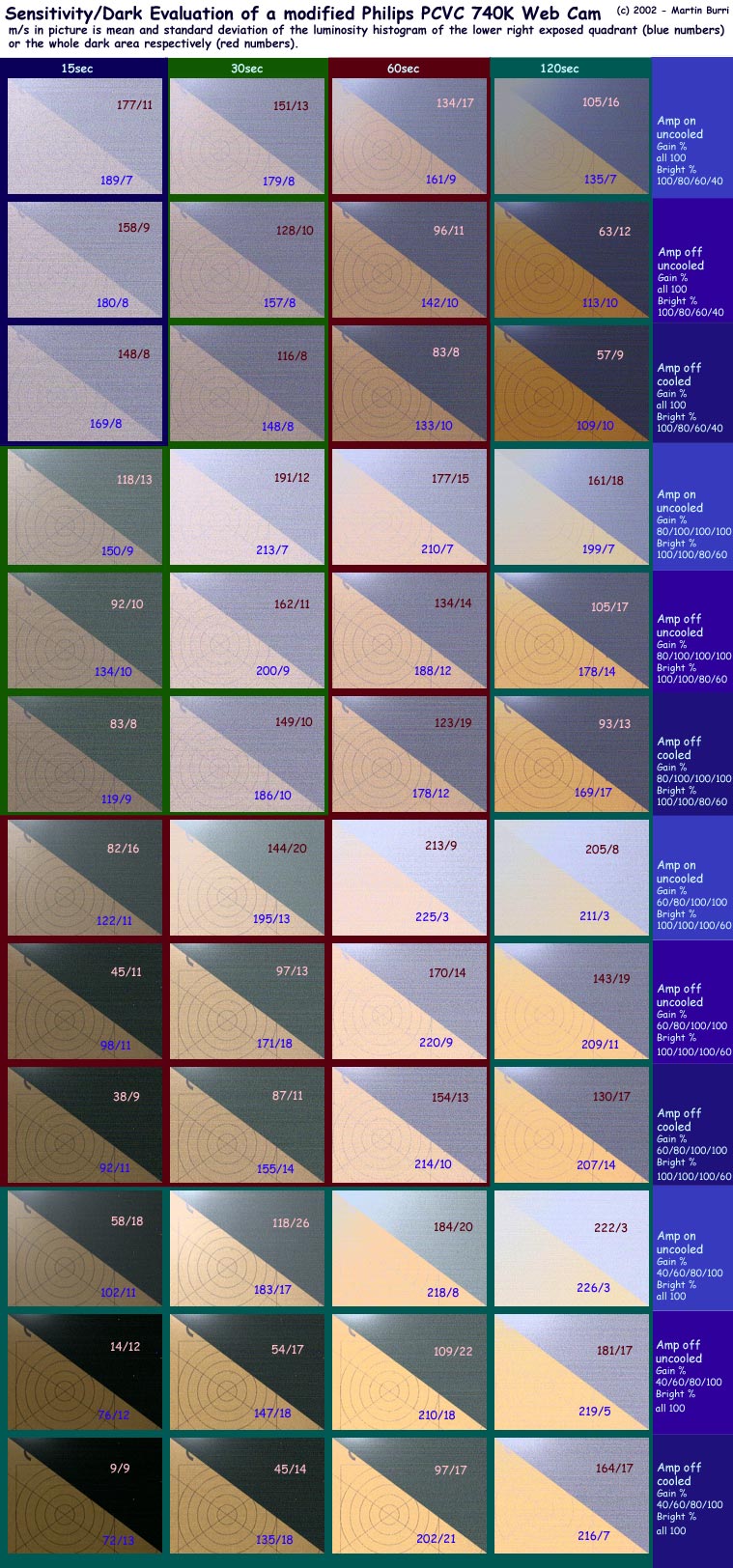

Here are dark frames (181kB) and here a series of exposed frames (162kB)

Here is a comparison (151kB) of my old transistor at Pin9 and the new Zener diode Mod.
